16F877 and 4094 please help

Printable View

- 17th October 2009, 11:29
dovegroup

1 Attachment(s)

16F877 and 4094 please help

Hello friends
I have manufactured this circuit with 16F877
3 switches of entry that them portray the situation of entry in the 4094
This code work good .my problem is always sees the last entry
that I can see the all entries simultaneously be portrayed in the 4094

Code:

INCLUDE "modedefs.bas" DEFINE SHIFT_PAUSEUS 100 TRISB = %00000111 alarm var word '**************************************************************** symbol clock=portc.4 symbol data_pin=portc.2 symbol strb=PORTc.3 '**************************************************************** alarm=0 start: IF PORTB.0=0 THEN alarm=%10000000 ENDIF IF PORTB.1=0 THEN alarm=01000000 ENDIF IF PORTB.2=0 THEN alarm=%00100000 ENDIF gosub print goto start print: ShiftOut data_pin,clock,0,[alarm] strb = 1 : PAUSEUS 100 : STRB = 0 return end
- 17th October 2009, 14:04
mehmetOzdemir

i didnt understand what you mean ;

i think this will help you if i understood right.

Code:

INCLUDE "modedefs.bas" DEFINE SHIFT_PAUSEUS 100 TRISB = %00000111 alarm var byte flag var byte '**************************************************************** symbol clock=portc.4 symbol data_pin=portc.2 symbol strb=PORTc.3 '**************************************************************** alarm=0 flag = 0 start: IF PORTB.0=0 THEN alarm=%10000000 flag.0 = 1 ELSE flag.0 = 0 ENDIF IF PORTB.1=0 THEN alarm=01000000 flag.1 = 1 ELSE flag.1 = 0 ENDIF IF PORTB.2=0 THEN alarm=%00100000 flag.2 = 1 ELSE flag.2 = 0 ENDIF IF flag = 0 THEN alarm = 0 gosub print goto start print: ShiftOut data_pin,clock,0,[alarm] strb = 1 : PAUSEUS 100 : STRB = 0 return end
- 17th October 2009, 14:05
Jerson

Code:

INCLUDE "modedefs.bas" DEFINE SHIFT_PAUSEUS 100 TRISB = %00000111 alarm var byte '**************************************************************** symbol clock=portc.4 symbol data_pin=portc.2 symbol strb=PORTc.3 '**************************************************************** alarm=0 start: IF PORTB.0=0 THEN alarm = alarm + $80 ' add the bit ELSE alarm = alarm & $7F ' remove the bit ENDIF IF PORTB.1=0 THEN alarm=alarm + $40 ELSE alarm = alarm & $BF ' remove the bit ENDIF IF PORTB.2=0 THEN alarm=alarm+$20 ELSE alarm = alarm & $DF ' remove the bit ENDIF gosub print goto start print: ShiftOut data_pin,clock,0,[alarm] strb = 1 : PAUSEUS 100 : STRB = 0 return end
- 18th October 2009, 07:01
dovegroup

Sorry for my English is not good
I want he permanently remains turned on corresponding led (TOGGLE led)
For each button that is activated
- 18th October 2009, 08:11
aratti

This will leave your last action ON.

Code:

INCLUDE "modedefs.bas" DEFINE SHIFT_PAUSEUS 100 TRISB = %00000111 alarm var BYTE Flag var BYTE '**************************************************************** symbol clock=portc.4 symbol data_pin=portc.2 symbol strb=PORTc.3 '**************************************************************** alarm=0 Flag = 0 start: Pause 10 IF PORTB.0=0 THEN alarm=%10000000 Flag=1 ENDIF IF PORTB.1=0 THEN alarm=%01000000 Flag = 1 ENDIF IF PORTB.2=0 THEN alarm=%00100000 Flag = 1 ENDIF If Flag = 1 Then gosub print goto start print: ShiftOut data_pin,clock,0,[alarm] strb = 1 : PAUSEUS 100 : STRB = 0 Flag = 0 return end

Al.
- 18th October 2009, 21:19
dovegroup

Thank you very much for the answers
But does not function the circuit,When I have in 3 inputs 0, (ΡΒ0=0,ΡΒ1=0,ΡΒ2=0)
Do not turn on 3 led but always only 1
- 18th October 2009, 23:09
Macgman2000

This code only has shiftout....the leds are on your shiftin receive side...right?

What you need to do is save your previous LED status. Currently every time you receive data from a button press it resets the other LED's so only 1 LED will be on.
- 19th October 2009, 07:37
aratti

Quote:

But does not function the circuit,When I have in 3 inputs 0, (ΡΒ0=0,ΡΒ1=0,ΡΒ2=0)
Do not turn on 3 led but always only 1

To have also two or three leds on at the same time you have to add more code (in red):

Code:

INCLUDE "modedefs.bas" DEFINE SHIFT_PAUSEUS 100 TRISB = %00000111 alarm var BYTE Flag var BYTE '**************************************************************** symbol clock=portc.4 symbol data_pin=portc.2 symbol strb=PORTc.3 '**************************************************************** alarm=0 Flag = 0 start: Pause 10 IF PORTB.0=0 THEN alarm=%10000000 Flag=1 ENDIF IF PORTB.1=0 THEN alarm=%01000000 Flag = 1 ENDIF IF PORTB.2=0 THEN alarm=%00100000 Flag = 1 ENDIF IF PORTB.0=0 and PORTB.1 =0 THEN alarm=%11000000 Flag=1 ENDIF IF PORTB.1=0 and PORTB.2 =0 THEN alarm=%01100000 Flag=1 ENDIF IF PORTB.0=0 and PORTB.2 =0 THEN alarm=%10100000 Flag=1 ENDIF IF PORTB.0=0 and PORTB.1 =0 AND PORTB.2 = 0 THEN alarm=%11100000 Flag=1 ENDIF If Flag = 1 Then gosub print goto start print: ShiftOut data_pin,clock,0,[alarm] strb = 1 : PAUSEUS 100 : STRB = 0 Flag = 0 return end

Very likely you will need also a reset, in this case add the following code:

Code:

IF PORTB.0=1 and PORTB.1 =1 AND PORTB.2 = 1 and alarm>0 THEN alarm=%00000000 Flag=1 ENDIF

You can also try the following code which is a lot shorter and should work as well.

Code:

INCLUDE "modedefs.bas" DEFINE SHIFT_PAUSEUS 100 TRISB = %00000111 Alarm var BYTE Flag var BYTE B0 var Byte '**************************************************************** symbol clock=portc.4 symbol data_pin=portc.2 symbol strb=PORTc.3 '**************************************************************** alarm = 0 Flag = 0 B0 = 0 start: Pause 10 B0 = PortB & %00000111 Alarm = (7 - B0) * 32 If Alarm <> Flag then gosub Print goto start Print: ShiftOut data_pin,clock,0,[alarm] strb = 1 : PAUSEUS 100 : STRB = 0 Flag = Alarm return end

Al.
- 19th October 2009, 16:45
dovegroup

Yes it works irreproachably
Thank you very much friend aratti
Thank you very much all friends for the answers
- 19th October 2009, 17:16
aratti

Glad to hear that! You are welcome.

Al.
- 19th May 2014, 11:03
Anatoli

1 Attachment(s)

Re: 16F877 and 4094 please help

Hi,
I am inexperienced still in picbasic but I try
Reading her user guide, and studying examples of code

I noticed in this post the code from aratti, It is exactly what I need (thank you very much aratti)
I used him as a basis, and I made changes so that him I adapt in my work

Here I would want your help, so that I use also port C from the 16F876, so that I increase the inputs (push button) circuit in 16

Thank you in advance
regards

Here it is the code and the circuit, that works perfect

Code:

DEFINE OSC 10 DEFINE SHIFT_PAUSEUS 100 TRISA = %00000000 TRISB = %11111111 TRISC = %00000000 ADCON1 = 7 '************************************ alarm var BYTE Flag var BYTE bleg var word B0 var word '************************************ Symbol data_pin=PORTA.0 Symbol clock=PORTA.1 Symbol strb=PORTA.2 Symbol oe=PORTA.3 '************************************ alarm=0 Flag = 0 B0 = 0 bleg= 900 portC = %00000000 '************************************ start: oe= 0:pause bleg B0 = PortB & %11111111 Alarm = (0 + B0) * 1 If Alarm <> Flag then gosub Print oe= 1:pause bleg goto start '************************************ Print: ShiftOut data_pin,clock,1,[alarm] strb = 1 : PAUSEUS 100 : STRB = 0 Flag = Alarm return end

Attachment 7346
- 20th May 2014, 10:55
dovegroup

Re: 16F877 and 4094 please help

Hi Anatoli

I am not guru in picbasic I will try to help you, with those who I know
It tryed these changes

Code:

DEFINE OSC 10 DEFINE SHIFT_PAUSEUS 100 TRISA = %00000000 TRISB = %11111111 TRISC = %11111111 alarm var word Flag var BYTE bleg var word B0 var word C0 var word '************************************ Symbol data_pin=PORTA.0 Symbol clock=PORTA.1 Symbol strb=PORTA.2 Symbol oe=PORTA.3 '************************************ alarm=0 Flag = 0 B0 = 0 C0 = 0 bleg= 500 portC = %00000000 ADCON1 = 7 '************************************ start: oe= 0:pause bleg B0 = PortB & %11111111 C0 = PortC & %11111111 Alarm = (0 + C0) * 1 & Alarm = (0 + B0) If Alarm <> Flag then gosub Print oe= 1:pause bleg goto start '************************************ Print: ShiftOut data_pin,clock,1,[alarm\8] strb = 1 : PAUSEUS 100 : STRB = 0 Flag = Alarm return end
- 20th May 2014, 13:00
Anatoli

Re: 16F877 and 4094 please help

Hi dovegroup

I thank you for your help, him I tryed
the second IC-4094 works rightly, but the first IC-4094 does not works any output
- 20th May 2014, 13:34
AvionicsMaster1

Re: 16F877 and 4094 please help

It looks like you're using Proteus and simulating the project. If so, and maybe not, you've assigned D9 to two chips which I'm assuming are the 4094. Change one or the other to something else and hook something up to the lower chip. Then see what you've got.
- 20th May 2014, 15:10
Anatoli

1 Attachment(s)

Re: 16F877 and 4094 please help

Friends Dovegroup and AvionicsMaster1

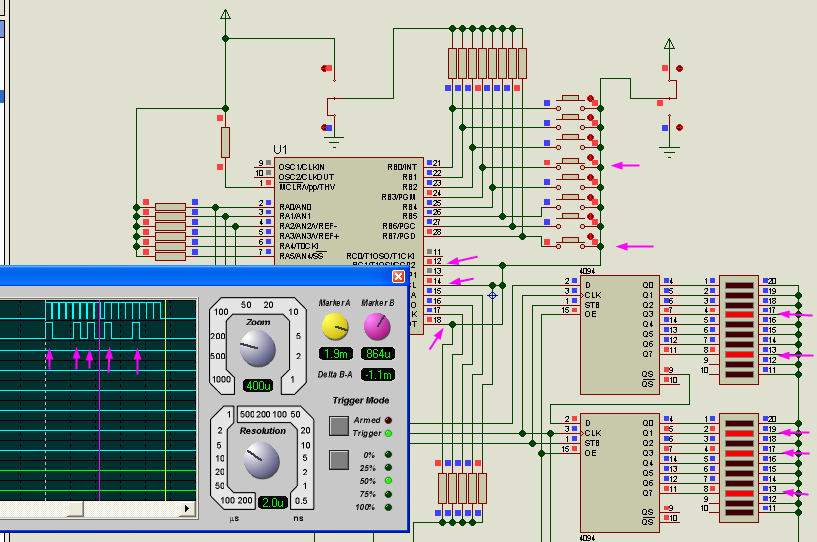

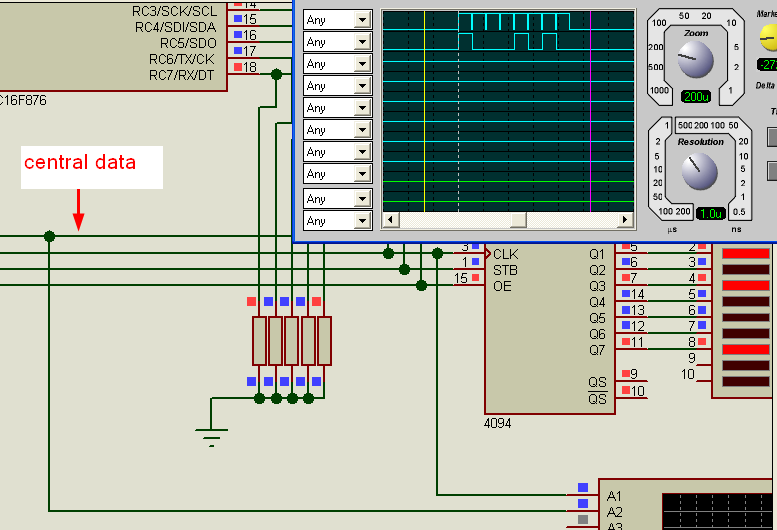

Connecting a logic analyzer in line CLOCK and DATA
I discovered that the DATA that are directed to the IC-4094 are only 8bit, would not be supposed were 16bit
8bit for the first IC and 8bit for the second IC

See the snapshot from the analyzer

Attachment 7347
- 20th May 2014, 15:42
dovegroup

Re: 16F877 and 4094 please help

Very rightly Aнатолий
8bit for the first 4094 and 8bit for the second 4094
I do not know to answer you how it will become this, I suppose that thus

ShiftOut data_pin,clock,1,[alarm_1,alarm_2]
- 20th May 2014, 15:58
Anatoli

Re: 16F877 and 4094 please help

I will try with this
Thank you .Я благодарю товарища
- 20th May 2014, 18:00
Anatoli

1 Attachment(s)

Re: 16F877 and 4094 please help

Товарища dovegroup

Even if you are not guru in the picbasic as you report in initial your post
Your help was very big, so that I complete my work

See the changes that I made

Alarma = (0 + C0) * 1
Alarme = (0 + B0) * 1

ShiftOut data_pin,clock,1,[Alarma,Alarme]

Thank you very much
Aнатолий (Anatoli)

Attachment 7348
- 21st May 2014, 13:22
dovegroup

Re: 16F877 and 4094 please help

Anatoli good the knowledge guru my friend, but when doesn't exist appetite in order to you help ?
I am cheerful that I even helped little So that you will complete your work

привет товарищ Анатолий
алексей или иным dovegroup
