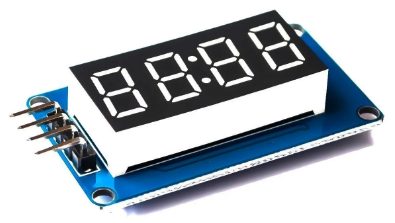

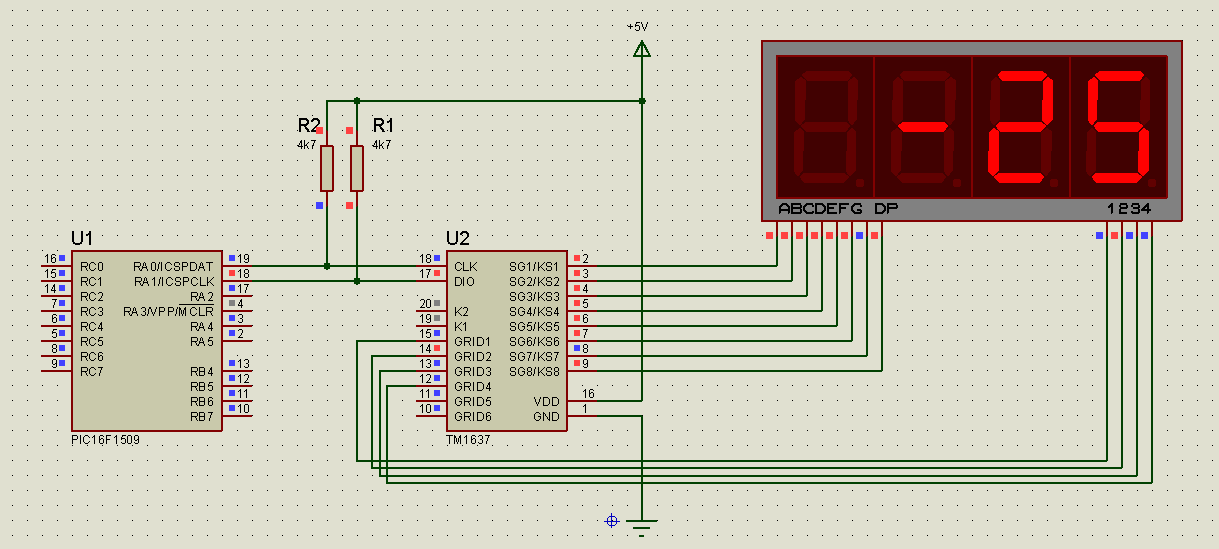

TM1637 Seven Segment LED Display with PicBasic Pro

#CONFIG
    __config _CONFIG1, _FOSC_INTOSC & _WDTE_OFF & _PWRTE_ON & _MCLRE_OFF & _CP_ON & _BOREN_ON & _CLKOUTEN_OFF & _IESO_OFF & _FCMEN_OFF
    __config _CONFIG2, _WRT_OFF & _STVREN_OFF & _BORV_LO & _LPBOR_ON & _LVP_OFF
#ENDCONFIG




clear


define OSC 4


OSCCON = $68

TRISA  = 0;
TRISB = 0;
TRISC = 0;

ANSELA = 0;
ANSELB = 0;
ANSELC = 0;


ADCON0 = 0;
ADCON1 = 0;
ADCON2 = 0;


LATA = 0;
PORTA = 0;

LATB = 0;
PORTB = 0;


LATC = 0;
PORTC = 0;


FVRCON = 0;


T2CON = 0;
CM1CON0 = 0;
CM1CON1 = 0;




DEFAULT_BIT_DELAY con 100


TM1637_I2C_COMM1 con $40
TM1637_I2C_COMM2 con $C0
TM1637_I2C_COMM3 con $80


LEDPIN var PORTC.3
TM1637_CLK var PORTA.0
TM1637_DIO var PORTA.1


TM1637_CLK_DIR var TRISA.0
TM1637_DIO_DIR var TRISA.1


Number var word
m_brightness var byte
brightness con 7
dispon con 1


WriteByte var byte


'When these two values change, you need to take care of the dot and minus sign behaviour.
pos con 0       ' Shifts position of the number on display
length con 4    ' how many digits to show on display


' just variables.
k var byte
i var byte
tempbits var byte
tempbits = 0


dot_yesno var tempbits.0         ' want to show dot?
dot_digitno var byte             ' on which digit to show the dot?


minus_yesno var tempbits.1       ' want to show minus sign?
minus_digitno var byte           ' on which digit to show the minus sign?


dig2_onoff var tempbits.2        ' depending on the minus sign is either yes or no,
dig3_onoff var tempbits.3           '... turn the left most digits off.




minusSegments con $40 ' did you want a minus sign on display?


digitToSegment var byte(16)    ' Seven segment LED bits corresponding to the number digit.
digitToSegment[0] = $3F         '// 0
digitToSegment[1] = $06         '// 1
digitToSegment[2] = $5B         '// 2
digitToSegment[3] = $4F         '// 3
digitToSegment[4] = $66         '// 4
digitToSegment[5] = $6D         '// 5
digitToSegment[6] = $7D         '// 6
digitToSegment[7] =  $07        '// 7
digitToSegment[8] =  $7F        '// 8
digitToSegment[9] = $6F         '// 9
digitToSegment[10] = $77        '// A    ' can also display some letters.
digitToSegment[11] = $7C        '// b
digitToSegment[12] = $39        '// C
digitToSegment[13] = $5E        '// d
digitToSegment[14] = $79        '// E
digitToSegment[15] = $71        '// F




Begin:

    gosub startTM
    gosub stopTM
    gosub TM1637Display
    gosub setBrightness     ' brightness con 7, 7 is max.

    minus_yesno = 0
    minus_digitno = 3       ' show minus sign on digit 3.


    dot_yesno = 0           ' show no dot for now.
    dot_digitno = 2

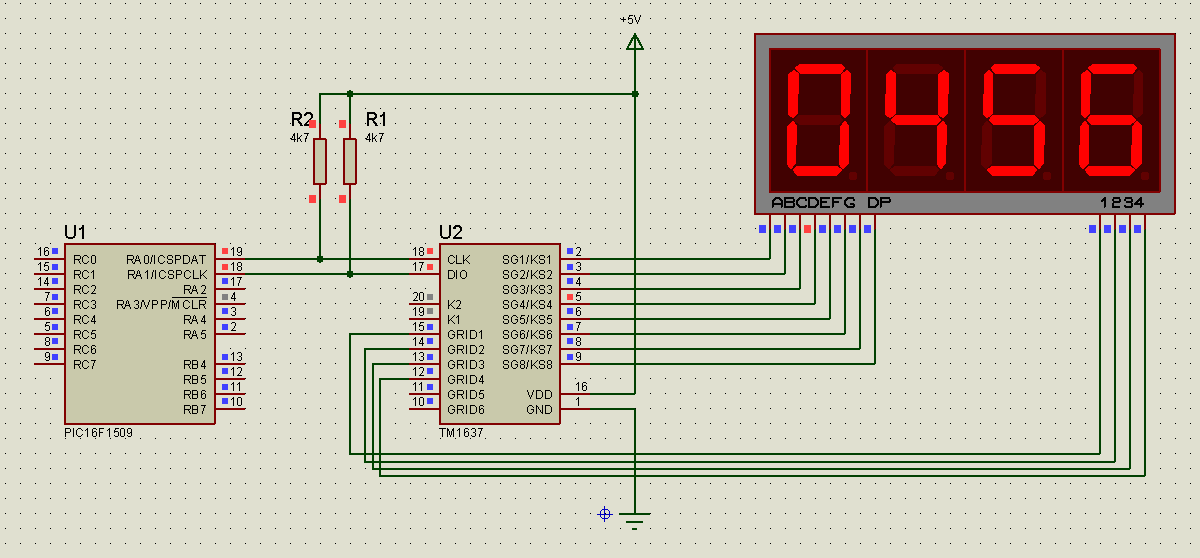

    number = 456;
    gosub setSegments ' call this once.



Start:

    PAUSE 10

    goto start





setSegments:


    'Write COMM1
    gosub startTM
    WriteByte = TM1637_I2C_COMM1
    gosub writeBytes

    gosub stoptm


    'Write COMM2 + first digit address
    gosub starttm
    WriteByte =  TM1637_I2C_COMM2 + (pos & $03)
    gosub writeBytes


    dig2_onoff = 1
    dig2_onoff = 1


    ' Write the data bytes
    for k = length-1 to 0 step -1
       WriteByte = digitToSegment[number dig k]
       if dot_yesno = 1 && k = dot_digitno then WriteByte.7 = 1


       if minus_yesno then
          if k = minus_digitno then WriteByte =  minusSegments
          if k > minus_digitno then WriteByte = 0     ' turn of digits after minus sign.
       endif


       gosub writeBytes
    next k


    gosub stoptm


    'Write COMM3 + brightness
    gosub starttm
    WriteByte = TM1637_I2C_COMM3 + (m_brightness & $0f)
    gosub writeBytes
    gosub stoptm



return






startTM:


  TM1637_DIO_DIR = 0;
  PAUSEUS DEFAULT_BIT_DELAY


return


stopTM:
    TM1637_DIO_DIR = 0
    PAUSEUS DEFAULT_BIT_DELAY

    TM1637_CLK_DIR = 1
    PAUSEUS DEFAULT_BIT_DELAY

    TM1637_DIO_DIR = 1
    PAUSEUS DEFAULT_BIT_DELAY

return


writeBytes:



  ' 8 Data Bits
  for i = 0 to 7
    'CLK low
    TM1637_CLK_DIR = 0;
    PAUSEUS DEFAULT_BIT_DELAY


    ' Set or Clear databit
    TM1637_DIO_DIR = WriteByte.0[i];
    PAUSEUS DEFAULT_BIT_DELAY


    'CLK high
    TM1637_CLK_DIR = 1;
    PAUSEUS DEFAULT_BIT_DELAY
  next i




  ' CLK to zero
  TM1637_CLK_DIR = 0
  TM1637_DIO_DIR = 1
  PAUSEUS DEFAULT_BIT_DELAY


  TM1637_CLK_DIR = 1
  PAUSEUS DEFAULT_BIT_DELAY
  if TM1637_DIO == 0 then TM1637_DIO_DIR = 0


  PAUSEUS DEFAULT_BIT_DELAY
  TM1637_CLK_DIR = 0;
  PAUSEUS DEFAULT_BIT_DELAY


  return


TM1637Display:
    ' Set the pin direction and default value.
    ' Both pins are set as inputs, allowing the pull-up resistors to pull them up
    TM1637_CLK_DIR = 1;
    TM1637_DIO_DIR = 1;


    TM1637_CLK_DIR = 0;
    TM1637_DIO_DIR = 0;


    TM1637_CLK = 0;
    TM1637_DIO = 0;


return




setBrightness:


    if dispon then
        m_brightness = (brightness & 7 ) | 8
    else
        m_brightness = (brightness & 7)
    endif


return


end
